1
Engine displacement
650
2
Year
2005
3
Model
FS 650 C
4
Trim
FS 650 C
5
Parts Catalog
FRONT WHEEL
6
Parts Diagram
Parts Catalog
FRONT WHEEL
by
REAR WHEEL
FRONT WHEEL
14
14
16
16
71
72
10
11
12
12
81
83
82
60
62
1
70
1
FRONT WHEEL 3,5X17''
80009001444
429,91€ Unit Price incl. VAT
10
FRONT HUB CPL. SX SILVER 03
5480901004491
185,13€ Unit Price incl. VAT
11
BEA.SPACERTUBE 35X2 L=79,4 03
54809011000
21,54€ Unit Price incl. VAT
12
SPACER BUSHING F. FR. WHEEL
54809012000
9,92€ Unit Price incl. VAT
14
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
16,21€ Unit Price incl. VAT
16
SHAFT SEAL RING 35X47X7 TC
0760354771
5,87€ Unit Price incl. VAT
60
WAVE BRAKE DISC FRONT 2005
58609060000
277,94€ Unit Price incl. VAT
62
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
1,88€ Unit Price incl. VAT
70
FRONT RIM 3,5X17''
80009070000
342,55€ Unit Price incl. VAT
71
SPOKE M4,5X177-15G 17'' DDE
50309071177
4,17€ Unit Price incl. VAT
72
SPOKE NIPPLE M4,5X0,75 8X21
50309072000
1,27€ Unit Price incl. VAT
81
WH SPIN.FR. D=26 M24X1,5 03
54809081000
38,36€ Unit Price incl. VAT
82
SPINDLE SCREW M24X1,5 WS=27 03
54809082000
9,80€ Unit Price incl. VAT
83
PLUG BUSHING WS=27 03
54809081050
8,59€ Unit Price incl. VAT

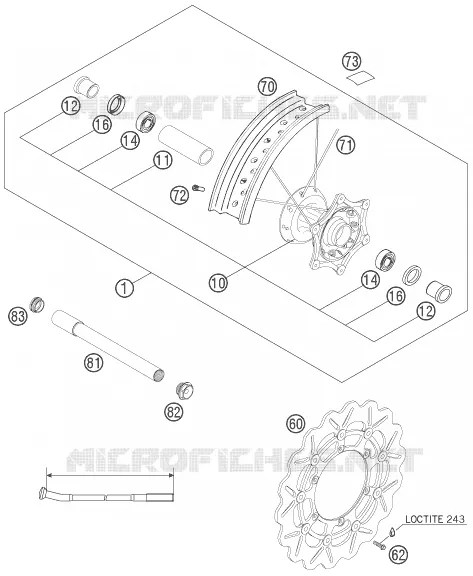

Find the detailed FRONT WHEEL HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
