1
Engine displacement
650
2
Year
2005
3
Model
FS 650 C
4
Trim
FS 650 C
5
Parts Catalog
FRAME
6
Parts Diagram
Parts Catalog
HANDLEBAR / CONTROLS
by
SIDE / MAIN STAND
FRAME
25
25
28
28
18
20
21
21
21
21
26
26
47
48
43
16
16
16
42
52
52
52
52
24
24
17
17
17
36
65
54
54
54
54
66
62
76
76
53
53
15
15
15
15
15
41
44
44
69
27
27
37
40
40
40
40
51
51
1
1
1
5
5
6
13
14
35
92
93
96
74
56
46
22
22
22
22
22
22
22
23
23
1
FRAME FC BLUE (HA04)
8000300100068
8000300110030
1 701,87€ Unit Price incl. VAT
1
FRAME FE/FS-EU BLUE (HB04)
8000300110068
8000300110030
1 701,87€ Unit Price incl. VAT
1
FRAME FE/FS-USA BLUE (HC04)
8000300120068
8000300110030
1 701,87€ Unit Price incl. VAT
5
ENGINE MOUNTING 04
80003005000
41,14€ Unit Price incl. VAT
6
SPACER ENGINE MOUNT. L=87MM 04
80003006000
9,38€ Unit Price incl. VAT
13
ENGINE BRACKET SCREW M8X110 04
80003013000
8,95€ Unit Price incl. VAT
14
ENGINE BRACKET SCREW M8X180 04
80003014000
10,04€ Unit Price incl. VAT
15
SELF LOCKING NUT M8 10.9
54310086200
2,06€ Unit Price incl. VAT
16
WASHER DIN0125-A 5,3
0125050003
1,03€ Unit Price incl. VAT
17
AH SCREW DIN0912-M 5X10
0912050103
1,39€ Unit Price incl. VAT
18
HH COLLAR SCREW M 5X12 WS=8
0015050123
0,67€ Unit Price incl. VAT
20
HH COLLAR SCREW M 8X35 WS=10
0015080353
2,84€ Unit Price incl. VAT
20
HH COLLAR SCREW M 8X50 WS=10
0015080503
3,75€ Unit Price incl. VAT
21
HH COLLAR SCREW M 8X50 WS=10
0015080503
3,75€ Unit Price incl. VAT
22
INTERCEPTING TANK CPL.
80031096044
25,71€ Unit Price incl. VAT
23
BRACKET F.INTERCEPTING TANK 05
80031096050
12,89€ Unit Price incl. VAT
24
O-RING 80,00X2,00 VITON
0770800021
3,45€ Unit Price incl. VAT
25
HH COLLAR SCREW M 6X10 WS=8
0014060103
0,67€ Unit Price incl. VAT
26
EJOT PT SCREW K60X20 WS=6
0017060203
0,73€ Unit Price incl. VAT
27
spacer bushing for speedometer
58314060050
2,90€ Unit Price incl. VAT
28
HH COLLAR SCREW M 6X15 WS=8
0014060153
0,73€ Unit Price incl. VAT
35
STEERING HEAD LOCK 04
80003035000
23,96€ Unit Price incl. VAT
36
HEXAGON NUT DIN0934-M 8
0934080003
1,15€ Unit Price incl. VAT
37
SPECIAL SCREW M8X26 WS=10
59001037000
3,03€ Unit Price incl. VAT
40
FOOT PED L/S EXC SILVER 00
59003040050
33,82€ Unit Price incl. VAT
40
FOOT PEG L/S SILVER 02
59003040250
50,40€ Unit Price incl. VAT
40
FOOT PED R/S EXC SILVER 2000
59003041050
33,82€ Unit Price incl. VAT
40
FOOT PEG R/S SILVER 02
59003041250
50,40€ Unit Price incl. VAT
41
FOOTREST SPRING L/S & R/S
54603041000
4,24€ Unit Price incl. VAT
42
washer DIN 125 A 10.5
0125100003
1,03€ Unit Price incl. VAT
43
PIN DIN0094-3,2X25 STEEL
0094032253
0,79€ Unit Price incl. VAT
44
BOLT FOR FOOTREST 9,8 X 50
54603044000
7,74€ Unit Price incl. VAT
44
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
9,08€ Unit Price incl. VAT
46
DISTANCE SPACER 22X8,2X16MM 05
80013046100
3,03€ Unit Price incl. VAT
47
washer DIN 9021 A - 5.3
0021050003
0,91€ Unit Price incl. VAT
48
WASHER DIN9021-A 8,4
0021080003
0,91€ Unit Price incl. VAT
51
BUSHING 8.2 X 12 X 6
74003021000
5,02€ Unit Price incl. VAT
52
GROOVED BALL BEAR. 608 2RS C3
0625006087
6,96€ Unit Price incl. VAT
53
CHAIN ROLL D=35MM 125-380 '99
52303053100
4,54€ Unit Price incl. VAT
54
LOCK WASHER 8MM
36003014000
2,00€ Unit Price incl. VAT
56
DISTANCE SPACER 8MM 04
80011056100
2,60€ Unit Price incl. VAT
62
RUBBER SLEEVE D=12MM
41001052000
4,30€ Unit Price incl. VAT
65
SELF LOCKING NUT DIN0985-M 5
0985050003
1,39€ Unit Price incl. VAT
66
KEY BLANK BLACK ''T'' GR
40011166200
14,88€ Unit Price incl. VAT
69
rubber grommet 16x10.8x3
58214069051
3,33€ Unit Price incl. VAT
74
BRACKET FOR REAR PART 2005
80008014100
11,80€ Unit Price incl. VAT
76
CABLE TIE 200/3,6MM BLACK
44011076200
0,18€ Unit Price incl. VAT
92
FRAME PROTECTION L/S BLACK 04
8000309200030
12,89€ Unit Price incl. VAT
93
FRAME PROTECTION R/S BLACK 04
8000309300030
16,21€ Unit Price incl. VAT
96
TAB FOR FILTER PROTECTION 04
80006096000
8,11€ Unit Price incl. VAT

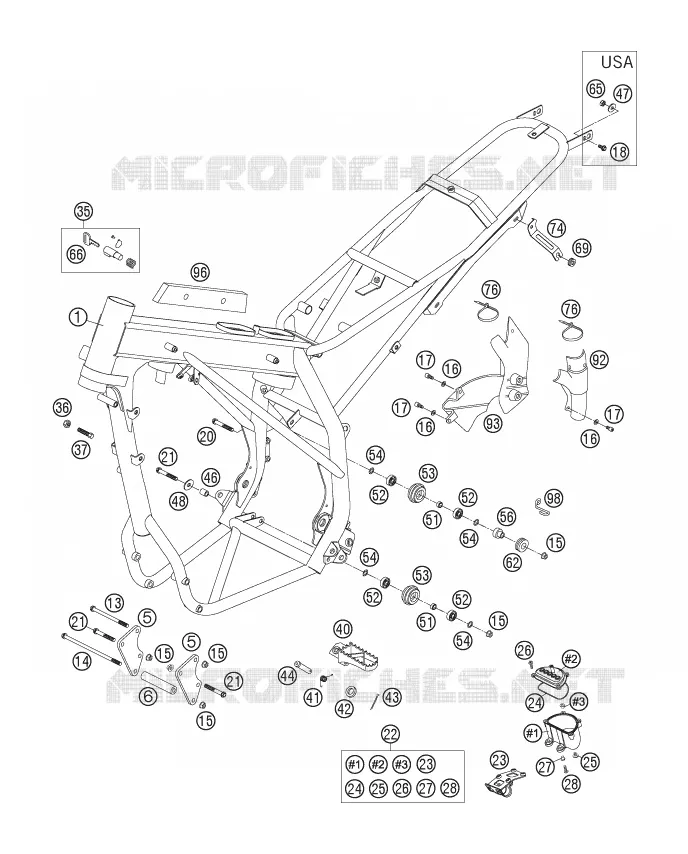

Find the detailed FRAME HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
