Engine displacement
550
2
Year
2005
3
Model
FS 550 E
4
Trim
FS 550 E
5
Parts Catalog
CRANKSHAFT / PISTON
6
Parts Diagram
Parts Catalog
CYLINDER / HEAD
by
ENGINE VENT
CRANKSHAFT / PISTON
79
76
77
86
28
82
82
82
33
74
74
31
85
19
20
83
83
32
81
81
81
29
7
7
19
18
18
18
18
7
7
18
18
18
18
7
7
19
18
18
7
PISTON I CPL. 100 MM 450 03
81030007000 I
203,64€ Unit Price incl. VAT
7
PISTON II CPL. 100 MM 450 03
81030007000 II
203,64€ Unit Price incl. VAT
7
PISTON I CPL. 100 MM 550 03
81530007000 I
203,64€ Unit Price incl. VAT
7
PISTON II CPL. 100 MM 550 03
81530007000 II
203,64€ Unit Price incl. VAT
7
PISTON I CPL. 100 MM 650 03
82030007000 I
291,19€ Unit Price incl. VAT
7
PISTON II CPL. 100 MM 650 03
82030007000 II
291,19€ Unit Price incl. VAT
18
CRANKSHAFT 450 FE CPL. 05
81030018100
815,72€ Unit Price incl. VAT
18
CRANKSHAFT 450 FC CPL. 05
81030118100
Not Available
18
CRANKSHAFT 550 FE, FS CPL. 03
81530018000
828,85€ Unit Price incl. VAT
18
CRANKSHAFT 550 FC CPL. 04
81530118000
828,85€ Unit Price incl. VAT
18
CRANKSHAFT 650 FE CPL. 05
82030018100
647,96€ Unit Price incl. VAT
19
CONROD REP.KIT 501/550 03
80030015000
379,03€ Unit Price incl. VAT
19
CONROD REP. KIT 450 05
81030015100
282,84€ Unit Price incl. VAT
19
CONROD REP. KIT 650 05
82030015100
294,15€ Unit Price incl. VAT
20
NUT M16X1 WS=30 03
80030018020
4,90€ Unit Price incl. VAT
28
COLLAR NUT M12X1 LEFT WS=17
51030028100
9,20€ Unit Price incl. VAT
29
PRIMARY GEAR 29-T 03
80032000029
131,22€ Unit Price incl. VAT
31
OIL SCRAPER RING D=100MM 03
60030032000
31,64€ Unit Price incl. VAT
32
RECTANGULAR RING 100X1,25
80030032000
34,61€ Unit Price incl. VAT
33
PISTON PIN BOLT 20X15,8/12X50
59030033000
16,21€ Unit Price incl. VAT
74
CIRCLIP C20X1,5
59030074000
4,84€ Unit Price incl. VAT
76
SHAF.SEAL RING 25X40X7 BAUM3SL
0760254071
6,90€ Unit Price incl. VAT
77
SHAFT SEAL RING 30X52X7
0760305271
5,87€ Unit Price incl. VAT
79
SPRING WASHER DIN0137-B12
0137120000
1,03€ Unit Price incl. VAT
81
THRUST WASHER 31X36X0,10
80030081010
1,21€ Unit Price incl. VAT
81
THRUST WASHER 31X36X0,20
80030081020
2,30€ Unit Price incl. VAT
81
THRUST WASHER 31X36X0,30
80030081030
1,21€ Unit Price incl. VAT
82
THRUST WASHER 30,5X45X0,10
56030081000
2,66€ Unit Price incl. VAT
82
THRUST WASHER 30,7X47X0,15
56030081100
2,66€ Unit Price incl. VAT
82
THRUST WASHER 30,5X45X0,30
56030081200
2,66€ Unit Price incl. VAT
83
CYL.ROLLBEAR.NJ206ECP/C3HVC058
80030019000
56,93€ Unit Price incl. VAT
85
WOODRUFF KEY 5X6,5 HARDED
6946005
1,27€ Unit Price incl. VAT
86
WOODRUFF KEY DIN6888-3X5X13
0888030050
1,03€ Unit Price incl. VAT

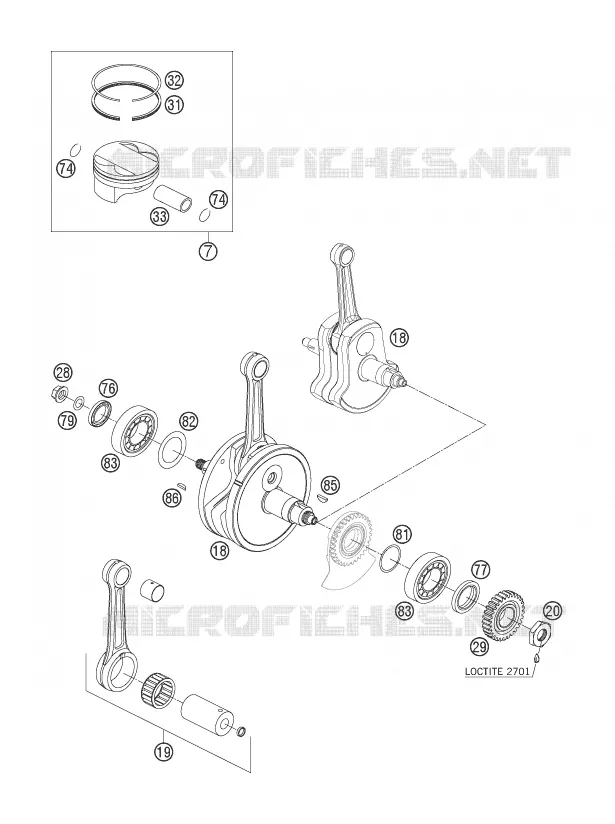

Find the detailed CRANKSHAFT / PISTON HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.
