1
Engine displacement
550
2
Year
2005
3
Model
FS 550 E
4
Trim
FS 550 E
5
Parts Catalog
FRONT BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
FRONT BRAKE MASTER CYLINDER
by
REAR BRAKE MASTER CYLINDER
FRONT BRAKE MASTER CYLINDER
33
32
6
36
36
4
80
50
1
2
9
3
40
5
10
8
37
37
38
20
27
28
30
31
29
17
17
1
HANDBRAKECYLINDER CPL. 05
58613001044
302,38€ Unit Price incl. VAT
2
HANDBRAKE LEVER 05
58613002000
38,72€ Unit Price incl. VAT
3
LEVER SCREW 05
58613002150
43,68€ Unit Price incl. VAT
4
SELF LOCKING NUT DIN0985-M 4
0985040003
1,39€ Unit Price incl. VAT
5
CLAMP 05
58613005150
24,26€ Unit Price incl. VAT
6
HH COLLAR SCREW M 6X25 WS=8
0015060253
0,67€ Unit Price incl. VAT
8
REP. SET PISTON 05
58613008000
37,03€ Unit Price incl. VAT
9
ROCKER CPL. 05
58613002050
89,18€ Unit Price incl. VAT
10
BEARING BOLT 05
58613006000
23,23€ Unit Price incl. VAT
17
CLAMP YDNAC 10096F (9,6MM)
59007017000
2,00€ Unit Price incl. VAT
20
BLEEDER SCREW WITH CAP
58613020000
14,34€ Unit Price incl. VAT
27
CONNECTING TUBE CPL. 05
58613027000
10,53€ Unit Price incl. VAT
28
RETAINING PLATE 05
58613028000
23,23€ Unit Price incl. VAT
29
HOSE FOR RESERVOIR 05
58613029150
11,98€ Unit Price incl. VAT
30
BRAKE FLUID RESERVOIR CPL. 05
58613029044
32,13€ Unit Price incl. VAT
31
FIXING SCREW F. RESERV. 05
58613029050
8,59€ Unit Price incl. VAT
32
HH COLLAR SCREW M 6X12 WS=8
0015060123
1,51€ Unit Price incl. VAT
33
HH COLLAR SCREW M 6X13 WS=8
0014060133
0,85€ Unit Price incl. VAT
36
sealing ring DIN 7603 10x14x1
0603100141
1,45€ Unit Price incl. VAT
37
BRAKEHOSE 1260MM 05
58613012000
100,31€ Unit Price incl. VAT
37
BRAKEHOSE 1175MM 05
58613012100
109,02€ Unit Price incl. VAT
38
BANJO SCREW 05
58613013100
8,59€ Unit Price incl. VAT
40
CLAMP FOR MIRROW 05
58613005050
24,26€ Unit Price incl. VAT
50
BRAKE LIGHT SWITCH CPL. 05
58611050000
42,35€ Unit Price incl. VAT
80
BRAKE FLUID DOT 4.0
306054
15,25€ Unit Price incl. VAT

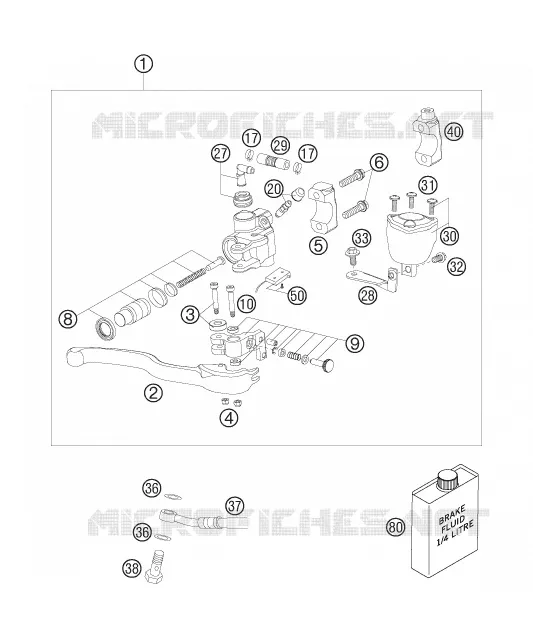

Find the detailed FRONT BRAKE MASTER CYLINDER HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
