GEAR SHIFTING MECHANISM for Husqvarna FE 350 from 2014

GEAR SHIFTING MECHANISM

1

SHIFT FORK 5./6.G.

54834201000

75,87€ Unit Price incl. VAT

2

SHIFT FORK 2./4.G.

54834202000

75,87€ Unit Price incl. VAT

3

SHIFT FORK 1./3. G.

54834203000

75,87€ Unit Price incl. VAT

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

1,57€ Unit Price incl. VAT

5

SHIFT SHAFT CPL.

54834005144

62,68€ Unit Price incl. VAT

7

PRESSURE SPRING 0,9MM

58038023200

6,41€ Unit Price incl. VAT

8

SLIDING PLATE CPL.

54634008044

7,74€ Unit Price incl. VAT

9

TENSIONING SPRING 0,8MM

56534013100

2,24€ Unit Price incl. VAT

10

SPRING GUIDE

54634020000

5,45€ Unit Price incl. VAT

11

BALL BEARING 6903 C4

0625069034

11,62€ Unit Price incl. VAT

12

SHIFTING DRUM

54834212000

97,10€ Unit Price incl. VAT

13

BALL BEARING 61805 C3

0625618050

16,21€ Unit Price incl. VAT

14

RETURN SPRING 03

54834014000

4,96€ Unit Price incl. VAT

15

SHIFT LOCATING DRUM CPL.

77234015000

55,30€ Unit Price incl. VAT

16

AH SCREW DIN0912-M 6X35

0912060353

1,39€ Unit Price incl. VAT

17

hex lobe countersunc screw M5x

0019050106S

2,24€ Unit Price incl. VAT

18

RETAINING PLATE F. CS BEARING

75030085000

3,03€ Unit Price incl. VAT

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

13,92€ Unit Price incl. VAT

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

16,58€ Unit Price incl. VAT

23

ARRESTING LEVER SPRING 03

60034023000

5,99€ Unit Price incl. VAT

24

LOCATING LEVER CPL. 08

50334024144

22,99€ Unit Price incl. VAT

25

SLEEVE FOR LOCKING LEVER

54634052300

4,78€ Unit Price incl. VAT

26

washer DIN 9021 A - 5.3

0021050003

0,91€ Unit Price incl. VAT

27

HH collar screw M5x20 TX30

0025050206

2,00€ Unit Price incl. VAT

31

SHIFT LEVER CPL.RACING 2000

59034031000

67,58€ Unit Price incl. VAT

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

23,17€ Unit Price incl. VAT

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

3,63€ Unit Price incl. VAT

34

SHIFTING LEVER SPRING 250

54634032100

2,60€ Unit Price incl. VAT

35

STOP DISK 14X30X1

54634050000

4,30€ Unit Price incl. VAT

36

needle sleeve HK 1412 14x20x12

54632095000

4,72€ Unit Price incl. VAT

37

radial shaft seal 14x24x6 B

0760142460

4,78€ Unit Price incl. VAT

38

STEEL WASHER 6,4X17X3

50232050001

2,00€ Unit Price incl. VAT

39

PAIR OF WASHERS M 6 NORDLOCK

50233041000

3,03€ Unit Price incl. VAT

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

1,88€ Unit Price incl. VAT

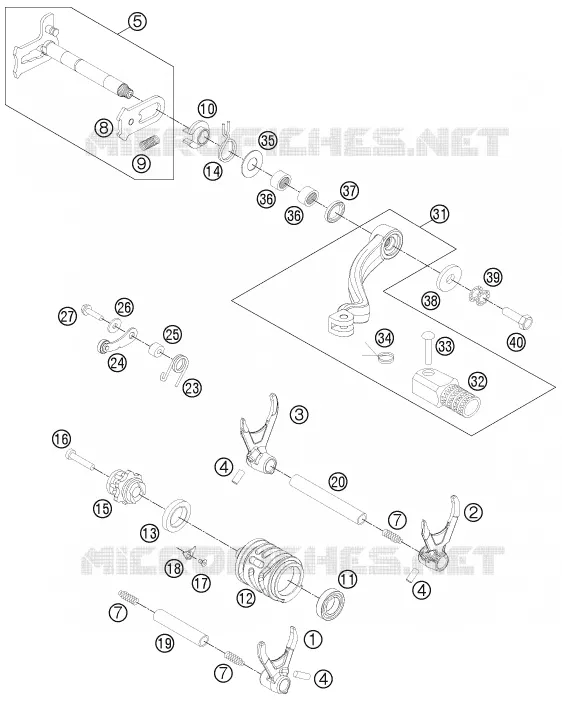

Find the detailed GEAR SHIFTING MECHANISM HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
