1
Engine displacement
450
2
Year
2006
3
Model
FS 450 E
4
Trim
FS 450 E
5
Parts Catalog
FRONT FORK (PARTS)
6
Parts Diagram
Parts Catalog
FRONT FORK / TRIPLE CLAMP
by
FRONT FORK (PARTS)
FRONT FORK (PARTS)
4
2
3
4
5
5
6
6
7
8
9
10
11
12
13
15
16
17
18
19
22
23
24
30
31
33
34
35
36
37
37
37
38
38
38
38
38
38
38
39
42
43
44
45
47
49
49
49
49
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
51
52
55
58
59
59
59
60
60
60
61
61
61
62
62
62
63
64
69
70
71
72
73
74
75
76
79
80
81
82
83
98
99
1
SCREW CAP M51X1,5 CPL.
48600020S1
46,28€ Unit Price incl. VAT
2
O-ring 45x2 NBR70 siliconized
46810340
1,88€ Unit Price incl. VAT
3
Adjuster rebound
48600018
5,81€ Unit Price incl. VAT
4
SCREW CAP M51X1,5 CPL.
48600020S1
46,28€ Unit Price incl. VAT
5
Steel ball d3
40540603
2,66€ Unit Price incl. VAT
6
Spring (1,7) l7,9
48600028
4,36€ Unit Price incl. VAT
7
O-ring 6x1,5 NBR70
48600044
1,33€ Unit Price incl. VAT
8
Cross flat head screw M4x6
48600058
2,66€ Unit Price incl. VAT
9
O-ring 3,7x1,6 NBR70
48600009
1,33€ Unit Price incl. VAT
10
O-ring 12x1,5 NBR70
48600043
1,33€ Unit Price incl. VAT
11
Tube tap d4x25
48600019
4,54€ Unit Price incl. VAT
12
OUTER TUBE L=577 D=54/60MM
48600381E
356,77€ Unit Price incl. VAT
13
Round-wire snap ring 48x2
48600016
3,69€ Unit Price incl. VAT
15
DU-BUSH D48XD52X12DDL02
48600429
14,46€ Unit Price incl. VAT
16
Supportwasher 50x57,6x1,5
48600013
5,81€ Unit Price incl. VAT
17
Shaft seal SKF 48x57,8x9,5 bla
48600399
10,65€ Unit Price incl. VAT
18
Snap ring SB58x1,5 acc drawing
48600070
3,69€ Unit Price incl. VAT
19
DUST CAP D=48 58,4X11,8
48600400
12,40€ Unit Price incl. VAT
22
DU-BUSH D47XD49X20DDL02
48600428
14,46€ Unit Price incl. VAT
23
INNER TUBE D=48 L=595
48600437
186,10€ Unit Price incl. VAT
24
Stop 14,4x32,1x200 cpl.
48600380S1
39,93€ Unit Price incl. VAT
30
ADJUSTMENT TUBE L=512MM
48600014
6,78€ Unit Price incl. VAT
31
PISTON ROD D=14 L=546 M11X1
48600408
58,56€ Unit Price incl. VAT
33
Needle 6x42,6 rebound
48600189
10,71€ Unit Price incl. VAT
34
O-ring 3x1,5 NBR70
48600046
1,33€ Unit Price incl. VAT
35
Spring (7,2) 4-23 needle
48600033
4,54€ Unit Price incl. VAT
36
Washer 32x42x2,5 plastic
48600113
5,32€ Unit Price incl. VAT
37
Preload bush 42x26,5x2,5
48600036
3,57€ Unit Price incl. VAT
37
Preload bush 26,5x42x5
48600037
4,36€ Unit Price incl. VAT
37
Preload bush 26,5x42x1,5
48600053
3,57€ Unit Price incl. VAT
38
SPRING 3,6N/MM SET
91410011S
111,08€ Unit Price incl. VAT
38
SPRING 3,8N/MM SET D=4,9MM
91410012S
111,08€ Unit Price incl. VAT
38
SPRING 4,0N/MM SET D=5,0MM
91410013S
231,23€ Unit Price incl. VAT
38
SPRING 4,2N/MM SET D=5,0MM
91410014S
111,08€ Unit Price incl. VAT
38
SPRING 4,4N/MM SET D=5,1MM
91410015S
111,08€ Unit Price incl. VAT
38
SPRING 4,6N/MM SET
91410016S
111,08€ Unit Price incl. VAT
38
SPRING 4,8N/MM SET
91410017S
111,08€ Unit Price incl. VAT
39
Spring retainer 33,5x43x3
48600021
10,71€ Unit Price incl. VAT
42
SCREW SLEEVE M29,3X1 L=90 CPL.
48600383S
50,70€ Unit Price incl. VAT
43
O-ring 8x1,25 NBR70 siliconize
48600239
1,33€ Unit Price incl. VAT
44
Spring (15) 12-34,5 rebound
48600403
18,63€ Unit Price incl. VAT
45
Tap 6x45 rebound
48600203
13,31€ Unit Price incl. VAT
47
Spring (11,7) 1,5-8 valve
35480377
4,54€ Unit Price incl. VAT
49
SHIM 8X18X0,10
43570120
1,75€ Unit Price incl. VAT
49
CHECK VALVE 8X24X0,1
48600062
2,06€ Unit Price incl. VAT
49
Shim 8x20x0,10
48600215
2,06€ Unit Price incl. VAT
49
Shim 8x22x0,10
48600216
2,06€ Unit Price incl. VAT
50
Shim 6x14x0,10
40540401
1,75€ Unit Price incl. VAT
50
Shim 6x16x0,10
40540402
1,75€ Unit Price incl. VAT
50
Shim 6x18x0,10
40540403
1,75€ Unit Price incl. VAT
50
SHIM 6X16X0,25
40540414
1,75€ Unit Price incl. VAT
50
SHIM 6X18X0,25
40540415
1,75€ Unit Price incl. VAT
50
Shim 6x9x0,30
40540449
1,75€ Unit Price incl. VAT
50
Shim 6x9,5x0,30
40540450
1,75€ Unit Price incl. VAT
50
Shim 6x24x0,10
48600063
2,06€ Unit Price incl. VAT
50
Shim 6x22x0,10
48600064
2,06€ Unit Price incl. VAT
50
Shim 6x20x0,10
48600065
2,06€ Unit Price incl. VAT
50
Shim 6x24x0,10 delta
48600116
2,06€ Unit Price incl. VAT
51
Pistonring 26x28x5
48600060
7,50€ Unit Price incl. VAT
52
Piston 6,05x27,65x12 rebound
48600042
23,17€ Unit Price incl. VAT
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
4,54€ Unit Price incl. VAT
58
TUBE 29,3X1X385 ALU
48600140
133,10€ Unit Price incl. VAT
59
O-ring 46x2 NBR70 siliconized
48600048
1,88€ Unit Price incl. VAT
60
AXLE CLAMP L/S CPL. USD48 04
48600237S
48600860S
375,64€ Unit Price incl. VAT
61
AXLE CLAMP R/S CPL. USD48 04
48600238S
282,84€ Unit Price incl. VAT
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
1,27€ Unit Price incl. VAT
63
Nut valve M6x0,5 h6,5 WAF17
48600163
4,54€ Unit Price incl. VAT
64
Spring (8,5) l6,5 valve
48600202
4,54€ Unit Price incl. VAT
69
TAP COMPRESSION CPL. 03
48600152S1
35,94€ Unit Price incl. VAT
70
Shim 8x24x0,40
48600061
2,06€ Unit Price incl. VAT
71
Piston 6x27,8x9 compression
48600047
23,17€ Unit Price incl. VAT
72
O-ring 21x2 NBR70
46811499
1,63€ Unit Price incl. VAT
73
O-ring 24x2 NBR70
35480320
1,63€ Unit Price incl. VAT
74
TAP COMPRESSION
48600152
24,26€ Unit Price incl. VAT
75
Needle 10x11,6 compression
48600190
10,71€ Unit Price incl. VAT
76
O-ring 8x2 NBR70
48600049
1,33€ Unit Price incl. VAT
79
Round-wire snap ring 12x1 DIN7
48600051
2,60€ Unit Price incl. VAT
80
Adjustment screw slot compress
48600034
4,11€ Unit Price incl. VAT
81
Copper disc 29,5x33,5x1
48600004
1,63€ Unit Price incl. VAT
82
Rubber cap 35x10 NBR80
48600141
1,63€ Unit Price incl. VAT
83
FORK OIL SAE5 5L 2005
48600401S1
110,72€ Unit Price incl. VAT
98
SILICONE GREASE F. DUST STRI
T511
52,47€ Unit Price incl. VAT
99
REPAIR-KIT EXC FRONT FORK06/07
R14013
85,00€ Unit Price incl. VAT

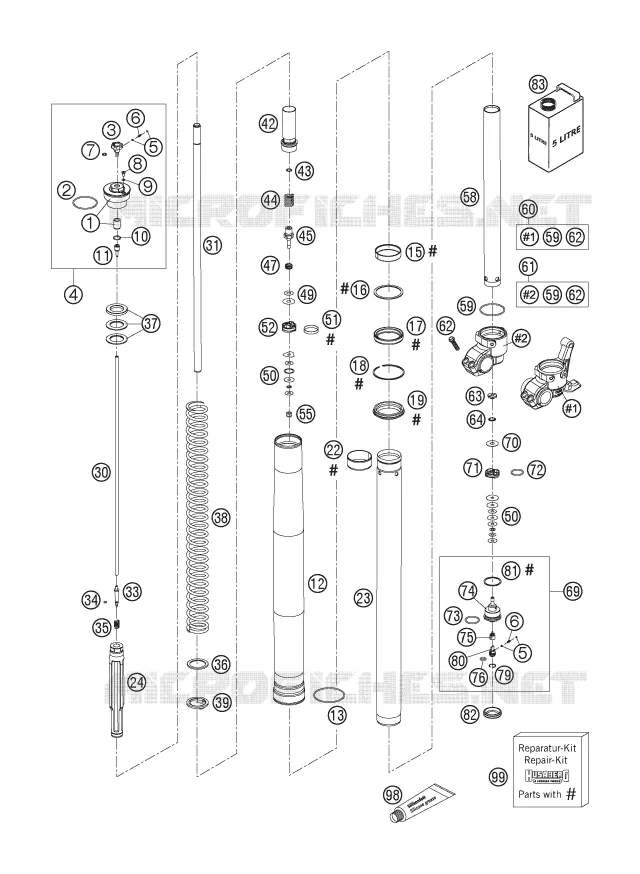

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
