FRONT FORK (PARTS) for Husqvarna FE 570 S from 2011

Adjuster compression cpl.

48600811S

4,72€ Unit Price incl. VAT

Fork outer tube 49,13x577 dt54

48600736

316,17€ Unit Price incl. VAT

Fork protection ring 62,1mm

48600698

9,08€ Unit Price incl. VAT

DU-BUSH D48XD52X12DDL02

48600429

14,46€ Unit Price incl. VAT

Supportwasher 50x57,6x1,5

48600013

5,81€ Unit Price incl. VAT

Shaft seal SKF 48x57,9x9 grün

48600969

12,71€ Unit Price incl. VAT

Snap ring SB58x1,5 acc drawing

48600070

3,69€ Unit Price incl. VAT

DUST SEAL DL D48 SKF

48600968

12,40€ Unit Price incl. VAT

DU-BUSH D47XD49X20DDL02

48600428

14,46€ Unit Price incl. VAT

Membrane 11,2x37x112

48600281

33,34€ Unit Price incl. VAT

O-ring 9,5x1,5 NBR70 yellow

48600301

1,33€ Unit Price incl. VAT

O-ring 17x2 70 Sh NBR black

46810811

1,33€ Unit Price incl. VAT

SCREW BUSH M20X1 L=33 CPL.

48600280S

33,34€ Unit Price incl. VAT

Copper disc 20,5x26x1

48600275

1,63€ Unit Price incl. VAT

Adjustment tube 6x371

48600269

23,17€ Unit Price incl. VAT

Piston rod 12x405

48600464

65,04€ Unit Price incl. VAT

Lock nut M12x1 h23 WAF17

48600459

9,08€ Unit Price incl. VAT

Needle 4,5x43,6 rebound

48600887

10,71€ Unit Price incl. VAT

O-ring 2x1,5 NBR70

48600298

1,33€ Unit Price incl. VAT

Spring (5,4) 4-23 rebound

48600444

4,54€ Unit Price incl. VAT

SPRING 4,8N/MM SET D=5,25 MM

91410020S

111,08€ Unit Price incl. VAT

SPRING 4,4 N/MM SET D=5,1MM

91410027S

111,08€ Unit Price incl. VAT

SPRING 4,6 N/MM SET D=5,1MM

91410028S

111,08€ Unit Price incl. VAT

Washer 35x43x2,5 plastic

48600456

4,54€ Unit Price incl. VAT

Preload bush 35x43x3,5

48600457

4,54€ Unit Price incl. VAT

Washer 35x43x1,5 plastic

48600458

4,54€ Unit Price incl. VAT

Spring retainer 12,3x19x1,25 r

48600525

10,71€ Unit Price incl. VAT

Spring support ring 27,08x42x4

48600520

28,31€ Unit Price incl. VAT

O-ring 6x1,2 NBR70

48600299

1,33€ Unit Price incl. VAT

Spring (13,9) 37-32 rebound

48600578

12,52€ Unit Price incl. VAT

Tap 6x46 rebound

48600576

12,52€ Unit Price incl. VAT

Spring (11,4) 0,4-8 valve

48600382

4,54€ Unit Price incl. VAT

MEMBRANE HOLDER INKL. PIN SET

48600519S3

248,05€ Unit Price incl. VAT

Round-wire snap ring 28,5x1,5

48600512

3,15€ Unit Price incl. VAT

HS countersunk head screw M4x6

48600542

2,66€ Unit Price incl. VAT

O-ring 21x2 NBR70

46811499

1,63€ Unit Price incl. VAT

Piston 6x27,8x9 compression

48600047

23,17€ Unit Price incl. VAT

O-ring 4x1,5 NBR70

50180222

1,33€ Unit Price incl. VAT

PIN KIT

48600977S

12,52€ Unit Price incl. VAT

Nut M6x0,5 h6,5 WAF10 rebound

40540486

4,54€ Unit Price incl. VAT

Guiding ring 39x44x8

48600744

7,44€ Unit Price incl. VAT

Spring guide ring 27,08x32x9,5

48600577

9,08€ Unit Price incl. VAT

Washer 32x42x2,5 plastic

48600113

5,32€ Unit Price incl. VAT

AXLE CLAMP LEFT + TUBE CPL.

48600863SA

384,66€ Unit Price incl. VAT

AXLE CLAMP RIGHT + TUBE CPL.

48600864SA

375,64€ Unit Price incl. VAT

HH collar screw M8x25

0025080256

3,27€ Unit Price incl. VAT

Nut valve M6x0,5 h6,5 WAF17

48600885

4,54€ Unit Price incl. VAT

Spring (8,5) l6,5 valve

48600202

4,54€ Unit Price incl. VAT

Tap 6x38 compression

48600509

12,52€ Unit Price incl. VAT

Piston 6,07x22,7x13

48600575

23,17€ Unit Price incl. VAT

Piston ring 21x23x5

48600455

48601625

3,93€ Unit Price incl. VAT

RING D=23,45X2,65

48600296

10,71€ Unit Price incl. VAT

Seal ring Freudenberg 12mm 85S

48600829

5,87€ Unit Price incl. VAT

SCREW SLEEVE M24,5X1 CPL

48600760S

57,90€ Unit Price incl. VAT

Guide bushing 12x14x10

48600430

7,44€ Unit Price incl. VAT

Check valve locking R4

48600709

15,31€ Unit Price incl. VAT

Round-wire snap ring 24x2

48600446

3,15€ Unit Price incl. VAT

Silicon plug 60Sh

15080017

2,66€ Unit Price incl. VAT

Rubber cap 26,4x11

48600692

3,33€ Unit Price incl. VAT

FORK OIL SAE5 5L 2008

48600765S1

105,75€ Unit Price incl. VAT

O-ring 43x2 NBR70 siliconized

40140024

1,88€ Unit Price incl. VAT

SCREW CAP CPL. L=125

48600516S1

82,28€ Unit Price incl. VAT

Cross flat head screw M4x10

48600526

2,66€ Unit Price incl. VAT

Clamping ring bladder 11,31x22

48600514

26,02€ Unit Price incl. VAT

SILICONE GREASE F. DUST STRI

T511

52,47€ Unit Price incl. VAT

REPAIR KIT SEALS MXMA CC2011

R14019

60,20€ Unit Price incl. VAT

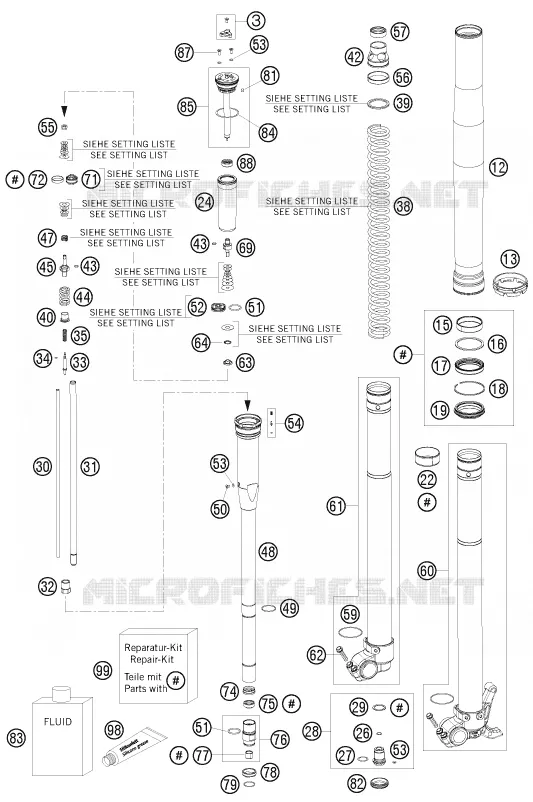

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
