1
Engine displacement
650
2
Year
2005
3
Model
FS 650 E
4
Trim
FS 650 E
5
Parts Catalog
FRONT BRAKE CALIPER
6
Parts Diagram
Parts Catalog
REAR BRAKE MASTER CYLINDER
by
FRONT BRAKE CALIPER
FRONT BRAKE CALIPER
35
27
26
25
30
30
5
6
30
21
12
12
12
12
12
18
18
18
10
10
1
30
20
1
BRAKECALIPER FRONT BREMBO 00
59013015144
59013015101
283,38€ Unit Price incl. VAT
5
REPAIR KIT 28MM
54613205000
16,21€ Unit Price incl. VAT
6
REPAIR KIT PISTON 28MM
54613206000
52,09€ Unit Price incl. VAT
10
BRAKEHO. FRONT 1235MM 2000
59013010000
120,33€ Unit Price incl. VAT
10
BRAKEHO. FRONT 1300MM 2000
59013011000
120,33€ Unit Price incl. VAT
12
RETAINING PLATE SET BREMBO
54613212000
13,92€ Unit Price incl. VAT
18
CUP SET SHORT
54613218000
16,70€ Unit Price incl. VAT
20
BLEEDER SCREW WITH CAP
60013020000
11,19€ Unit Price incl. VAT
21
BOLT CPL. 6X56
54613210100
22,69€ Unit Price incl. VAT
25
HOLLOW SCREW M10X1X19
50213025000
8,05€ Unit Price incl. VAT
26
CU-SEAL RING DIN7603-10X16X1
42013226000
1,75€ Unit Price incl. VAT
27
CU-SEAL RING DIN7603-10X16X1,5
42013026000
1,51€ Unit Price incl. VAT
30
BRAKE PAD SET FR. TOSHIBA H38
50313030000
44,47€ Unit Price incl. VAT
30
BRKP.SET FR.TOSHIBATT2701HHB
50313030100
64,13€ Unit Price incl. VAT
30
BRAKE PAD SET FR. FERODID450
54613209044
54613209244
28,80€ Unit Price incl. VAT
30
BRAKE PAD SET FRONT SINTER03
59013030000
59013930200
39,99€ Unit Price incl. VAT
35
HH COLLAR SCREW M 8X35 WS=10
0015080353
2,84€ Unit Price incl. VAT

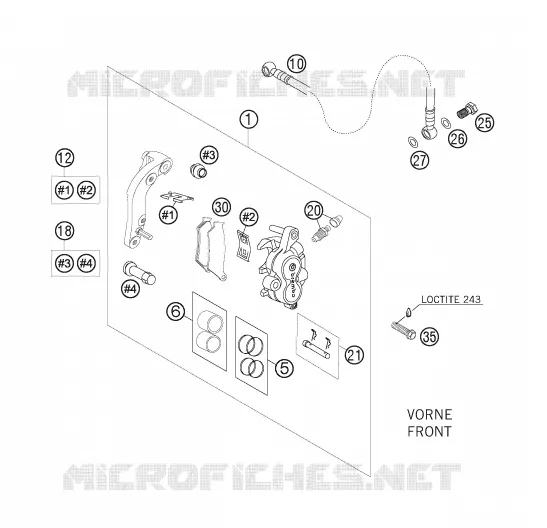

Find the detailed FRONT BRAKE CALIPER HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
