FRAME for Husqvarna VITPILEN 701 from 2020

FRAME

1

Frame 210RA

21003001000301

2 119,32€ Unit Price incl. VAT

2

CONNECTION BRACKET ENG. L/S 07

7500300104901

57,17€ Unit Price incl. VAT

3

CONNECTION BRACKET ENG. R/S 07

7500310104901

Not Available

4

Front frame cover left 2

21003085050

16,40€ Unit Price incl. VAT

5

Front frame cover right 2

21003086050

16,40€ Unit Price incl. VAT

6

splash guard head-tube

21003088000

9,08€ Unit Price incl. VAT

7

Splash protection, head tube

21003087000

10,65€ Unit Price incl. VAT

8

silentbloc 20x15-M6x10-(1)

43205062100

4,05€ Unit Price incl. VAT

9

HH collar screw M6x8 TX30

0025060086

2,00€ Unit Price incl. VAT

10

EXPANDING RIVET CPL.

76503075100

Not Available

11

Front footpeg bracket left

21003038000C1

367,72€ Unit Price incl. VAT

12

Heelguard left

21003038050

9,74€ Unit Price incl. VAT

13

Front footpeg bracket right

21003039000C1

358,64€ Unit Price incl. VAT

14

Heelguard right

21003039050

9,74€ Unit Price incl. VAT

15

EJOT PT screw K50x12

0081050121

2,00€ Unit Price incl. VAT

16

CHAIN SLIDING PIECE 03

54804067000

9,44€ Unit Price incl. VAT

17

Bracket Purge Valve

21011057050

33,40€ Unit Price incl. VAT

18

HH COLLAR SCREW M8X30 TX40

0025080306S

3,75€ Unit Price incl. VAT

19

washer DIN 125 A -8.4

0125080003

1,03€ Unit Price incl. VAT

20

SHCS M8x20 TX45

0035080206S

3,75€ Unit Price incl. VAT

23

BOLT FOR FOOTREST REAR 03

60003044000

12,58€ Unit Price incl. VAT

24

SPRING FOOTREST FRONT 05

61003042000

5,93€ Unit Price incl. VAT

25

retaining washer DIN 6799 - 6

0799060003

1,03€ Unit Price incl. VAT

26

CYL. SCREW DIN14579 M8X50 SS

014579080506S

4,24€ Unit Price incl. VAT

27

COLLAR NUT M10 WS=13

54630044000

3,45€ Unit Price incl. VAT

28

SPECIAL SCREW M10X129 HEX8 08

75603015000

13,79€ Unit Price incl. VAT

29

SPECIAL SCREW M10X152 ISK8 07

75003014000

13,79€ Unit Price incl. VAT

30

Footpeg kit

28503944044

65,04€ Unit Price incl. VAT

31

AH SCREW DIN0912-M 4X25

0912040253

1,39€ Unit Price incl. VAT

32

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

2,54€ Unit Price incl. VAT

33

BUSHING 8,2X10X20

51103053051

5,02€ Unit Price incl. VAT

34

Cable guide, right

21003001089

Not Available

35

SCREW M5X14 TORX 25 07

58605083014

1,82€ Unit Price incl. VAT

36

KANTENSCHUTZ 9.5X6.5X210

76003095210

11,01€ Unit Price incl. VAT

99

CHAIN SLIDING KIT UPPER CPL.

54804067010

19,60€ Unit Price incl. VAT

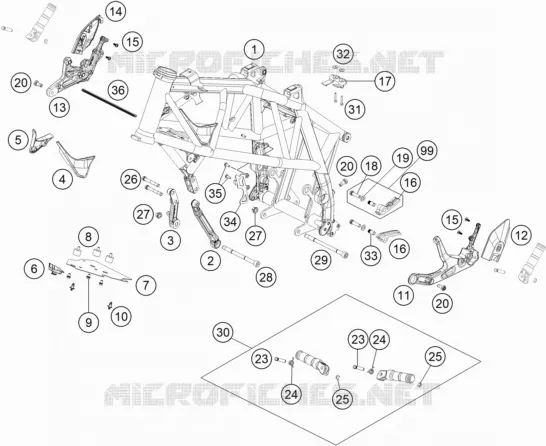

Find the detailed FRAME HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
