GEAR SHIFTING MECHANISM for Husqvarna 701 SUPERMOTO from 2018

GEAR SHIFTING MECHANISM

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

96,38€ Unit Price incl. VAT

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

96,38€ Unit Price incl. VAT

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

96,38€ Unit Price incl. VAT

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

1,57€ Unit Price incl. VAT

5

SHIFTRAIL 07

75034019000

9,08€ Unit Price incl. VAT

6

Shifting shaft assembled

76834005133

133,95€ Unit Price incl. VAT

7

TENSIONING SPRING 0,8MM

56534013100

2,24€ Unit Price incl. VAT

8

SPRING GUIDE

54634020000

5,45€ Unit Price incl. VAT

9

RETURN SPRING 03

54834014000

4,96€ Unit Price incl. VAT

10

STOP DISK 14X30X1,5 STEEL

75034050000

5,32€ Unit Price incl. VAT

11

needle sleeve HK 1412 14x20x12

54632095000

4,72€ Unit Price incl. VAT

12

SHAFT SEAL RING 14X24X6B VITON

0760142461

8,35€ Unit Price incl. VAT

13

SHIFT LEVER CPL. 07

75034031000

88,33€ Unit Price incl. VAT

14

SHIFTING LEVER SPRING

75034032000

3,21€ Unit Price incl. VAT

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

3,63€ Unit Price incl. VAT

18

PAIR NORDLOCK WASHER M6

50233041500

3,03€ Unit Price incl. VAT

19

HH collar screw M6x15 TX30

0024060156S

2,24€ Unit Price incl. VAT

20

HH collar screw M6x20 TX30

0024060206

2,00€ Unit Price incl. VAT

21

LOCKING LEVER CPL.

61434024000

32,55€ Unit Price incl. VAT

22

SLEEVE FOR LOCKING LEVER 07

75034052000

6,05€ Unit Price incl. VAT

23

ARRESTING LEVER SPRING 07

60034023100

5,99€ Unit Price incl. VAT

25

Shift locker

76834115001

49,01€ Unit Price incl. VAT

26

BALL BEARING 61805 C3

0625618050

16,21€ Unit Price incl. VAT

27

Shifting drum cpl.

76634012144

208,06€ Unit Price incl. VAT

28

NEEDLE BEAR HK3512 35X42X12

0618354212

8,23€ Unit Price incl. VAT

29

magnet holder cpl.

79234012020

36,54€ Unit Price incl. VAT

30

GEAR POSITION SENSOR

60411023000

174,72€ Unit Price incl. VAT

31

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

1,69€ Unit Price incl. VAT

32

PAN HEAD SCREW M5X10 TX25

073800501002

1,33€ Unit Price incl. VAT

33

SPRING F. SHIFTING SHAFT CPL.

75034007044

7,56€ Unit Price incl. VAT

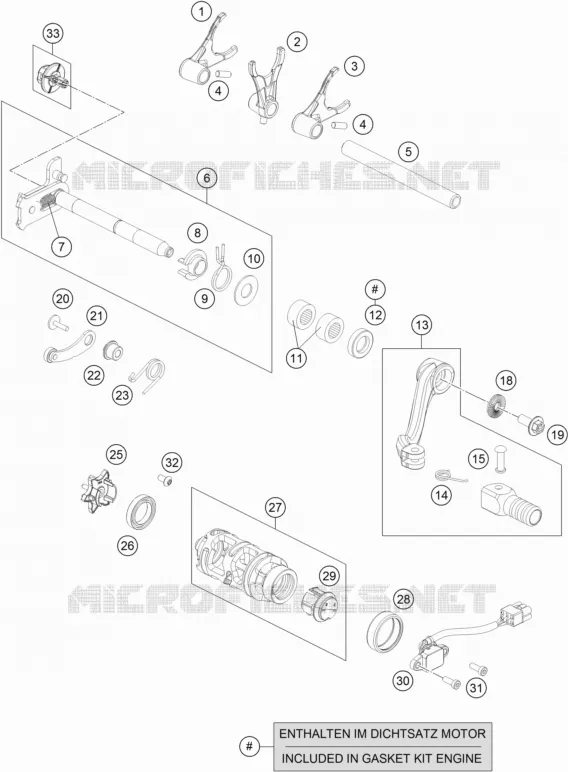

Find the detailed GEAR SHIFTING MECHANISM HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for 701 SUPERMOTO

FRONT FORK / TRIPLE CLAMP

FRONT FORK (PARTS)

HANDLEBAR / CONTROLS

FRAME

SIDE / MAIN STAND

SHOCK ABSORBER

SHOCK ABSORBER (PARTS)

SHOCK PRO LEVER LINKAGE

SWINGARM

EXHAUST

AIR FILTER

TANK / SEAT

FUEL PUMP

PLASTICS

STICKERS

FRONT WHEEL

REAR WHEEL

WIRING HARNESS

BATTERY

FRONT BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

FRONT BRAKE CALIPER

REAR BRAKE CALIPER

HEADLIGHT / TAIL LIGHT

IGNITION SWITCH

EVAPORATIVE CANISTER

TOOL KIT / MANUALS / OPTIONS

BRAKE ANTIBLOCK SYSTEM ABS

WP SHIMS FOR SETTING

CRANKCASE

CLUTCH COVER

BALANCER SHAFT

CYLINDER

CRANKSHAFT / PISTON

SYSTÈME D'AIR SECONDAIRE

CLUTCH

GEARBOX MAIN SHAFT

GEARBOX COUNTERSHAFT

GEAR SHIFTING MECHANISM

WATERPUMP

COOLING SYSTEM

VALVES

TIMING

CYLINDER HEAD

OIL PUMP

IGNITION SYSTEM

ELECTRIC STARTER MOTOR

THROTTLE BODY

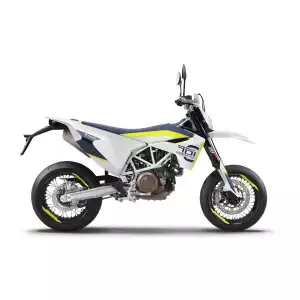

Husqvarna 701 SUPERMOTO 2018
