CYLINDER HEAD for Husqvarna 701 ENDURO from 2016

CYLINDER HEAD

1

CYLINDER HEAD CPL.

7603602004452

872,11€ Unit Price incl. VAT

2

CYLINDER HEAD GASKET

76030036000

47,43€ Unit Price incl. VAT

3

GROOVED PIN DIN1474 5X10

0474050100

1,03€ Unit Price incl. VAT

4

STUD DIN0835-M 8X25 10.9

0835080256

2,24€ Unit Price incl. VAT

5

VALVE GIUDE EXHAUST

60036026101

39,57€ Unit Price incl. VAT

6

VALVE GIUDE INTAKE

60036025101

39,57€ Unit Price incl. VAT

7

SHIM 10,2X19X1,5MM 05

60036078050

3,75€ Unit Price incl. VAT

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

12,71€ Unit Price incl. VAT

9

TEMPERATURE SENSOR WATER 07

75035047000

42,65€ Unit Price incl. VAT

10

o-ring 10.00x2.00 silicone

0770100020

1,39€ Unit Price incl. VAT

12

SCREW PLUG

59030296000

4,96€ Unit Price incl. VAT

13

SEALING PLUG

76036052051

3,75€ Unit Price incl. VAT

14

VALVE COVER GASKET 07

75036053000

23,29€ Unit Price incl. VAT

15

VALVE COVER 07

75036052000

85,79€ Unit Price incl. VAT

16

BREATHER COVER 07

75036052050

20,87€ Unit Price incl. VAT

18

HH collar screw M5x10 TX30

0025050106

2,00€ Unit Price incl. VAT

19

O-RING 15,00X1,50 VITON

0770150151

2,90€ Unit Price incl. VAT

20

valve mechanism cover screw

75036055000

7,08€ Unit Price incl. VAT

21

decoupling element

75036052010

3,75€ Unit Price incl. VAT

22

RUBBER SLEEVE INTAKE FLANGE

75036144000

34,79€ Unit Price incl. VAT

23

HOSE CLAMP GEMI 70MM

75036047000

5,45€ Unit Price incl. VAT

24

CU-SEAL RING DIN7603-6X10X1

0603061001

1,45€ Unit Price incl. VAT

25

HH collar screw M6x8 TX30

0025060086

2,00€ Unit Price incl. VAT

26

HH collar screw M6x25 TX30

0025060256

2,00€ Unit Price incl. VAT

29

PREFORMED HOSE OIL STRAINER

76530088100

24,14€ Unit Price incl. VAT

30

CLAMP STD DN20

00049200121

2,90€ Unit Price incl. VAT

31

CLAMP 21X12 STD-DES

00049210121

2,90€ Unit Price incl. VAT

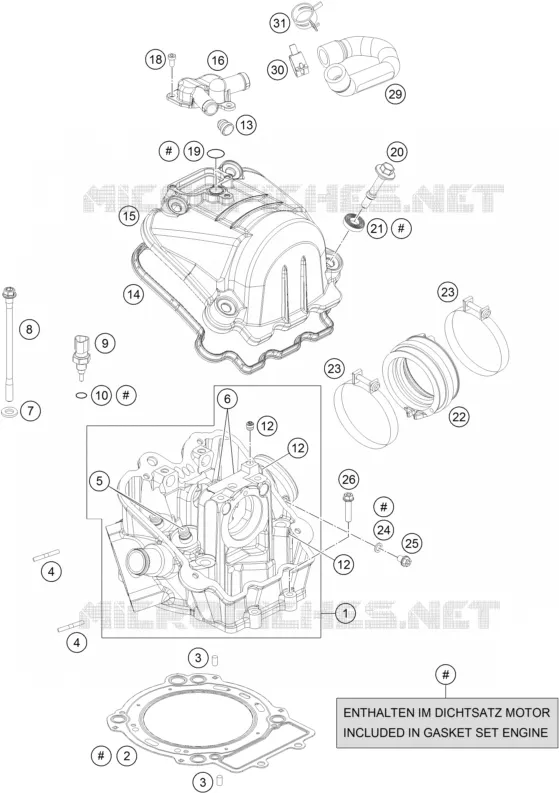

Find the detailed CYLINDER HEAD HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
