OIL PUMP for Husqvarna 701 ENDURO from 2017

OIL PUMP

1

TAB WASHER DIN6799-RS 6,0

0799060000

1,03€ Unit Price incl. VAT

2

STOP DISK 8,1 X 15 X 0,5

58038007755

2,48€ Unit Price incl. VAT

3

OIL PUMP GEAR 20-T

75038001020

33,94€ Unit Price incl. VAT

4

AH SCREW DIN7984 M5X10 A2

07984050100

0,97€ Unit Price incl. VAT

5

OIL PUMP SHAFT 07

75038002000

28,92€ Unit Price incl. VAT

6

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

1,57€ Unit Price incl. VAT

7

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

1,57€ Unit Price incl. VAT

8

OIL PUMP ROTOR COMPL. 15MM

77038011100

38,78€ Unit Price incl. VAT

9

OIL PUMP ROTOR COMPL. 10MM

59038011110

38,78€ Unit Price incl. VAT

10

HH collar screw M5x16 TX30

0025050166

2,00€ Unit Price incl. VAT

11

oil filter cover

75038041200

24,81€ Unit Price incl. VAT

12

O-RING 39,34X2,62

07700390261

1,69€ Unit Price incl. VAT

13

OILFILTER COVER

76038041000

33,52€ Unit Price incl. VAT

14

OIL PIPE

76538034000

64,37€ Unit Price incl. VAT

15

OIL FILTER SHORT

75038046100

7,08€ Unit Price incl. VAT

16

OIL FILTER LONG

58038005100

7,08€ Unit Price incl. VAT

17

VALVE PISTON D=10MM

58038028000

6,41€ Unit Price incl. VAT

18

OIL PRES.SPRING 5 BAR RED 2001

58538023000

6,41€ Unit Price incl. VAT

19

CU-SEAL RING DIN7603-12X18X1,5

58038022000

2,06€ Unit Price incl. VAT

20

threaded plug DIN 908 M12x1.5

0908120153

3,45€ Unit Price incl. VAT

21

O-RING 12,5X1,5 VITON V75

07701250151

2,90€ Unit Price incl. VAT

22

OIL SCREEN

59038016100

11,86€ Unit Price incl. VAT

23

o-ring 18.00x2.00 NBR70

0770180020

1,39€ Unit Price incl. VAT

24

PLUG M20X1,5 WS=13

59038017100

10,83€ Unit Price incl. VAT

25

OIL PUMP COVER 07

75038003000

19,36€ Unit Price incl. VAT

26

OIL PUMP SHAFT 07

75038004000

28,92€ Unit Price incl. VAT

27

OIL PUMP DRIVE WHEEL 07

75032050001

33,94€ Unit Price incl. VAT

28

OIL PUMP COVER

76038003000

38,48€ Unit Price incl. VAT

29

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

2,24€ Unit Price incl. VAT

30

HH collar screw M6x16 TX30 SL

0025060166S

2,24€ Unit Price incl. VAT

31

oil pressure switch ''BITRON''

61238091000

14,64€ Unit Price incl. VAT

32

sealing ring DIN 7603 10x14x1

0603100141

1,45€ Unit Price incl. VAT

33

SCREW M5X14 TORX 25 07

58605083014

1,82€ Unit Price incl. VAT

34

CLAMP RSGU 15/12

49007439000

2,36€ Unit Price incl. VAT

35

clip nut M5

69008021080

3,09€ Unit Price incl. VAT

99

OILFILTER SERVICEKIT 690 12-14

75038046110

64,31€ Unit Price incl. VAT

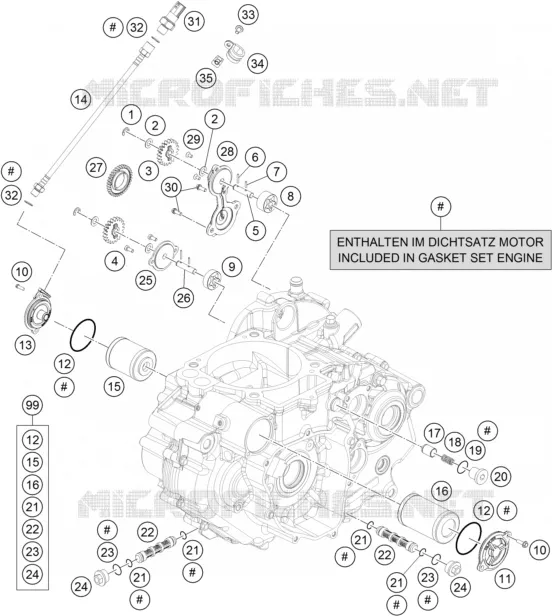

Find the detailed OIL PUMP HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
