1
Engine displacement
550
2
Year
2006
3
Model
FS 550 E
4
Trim
FS 550 E
5
Parts Catalog
REAR BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
FRONT BRAKE MASTER CYLINDER
by
FRONT BRAKE CALIPER
REAR BRAKE MASTER CYLINDER
1
10
11
12
13
20
26
27
27
30
35
37
40
42
48
49
50
50
50
51
51
52
53
54
55
56
57
58
59
60
60
62
66
66
70
72
1
FOOTBRAKECYL. 13MM NATURE 2001
50313060100
124,45€ Unit Price incl. VAT
10
REPAIR KIT PISTON 13MM
54513150000
55,66€ Unit Price incl. VAT
11
BRAKE LIGHT SWITCH REAR '98
50311051100
41,50€ Unit Price incl. VAT
12
HOLLOW SCREW M10X1X19
50213025000
8,05€ Unit Price incl. VAT
13
CU-SEAL RING DIN7603-10X16X1
42013226000
1,75€ Unit Price incl. VAT
20
BUSHING 6,2X10X2,5MM 04
80004060050
2,72€ Unit Price incl. VAT
26
HOSE FOR RESERVOIR 6X1,5
58007016101
11,13€ Unit Price incl. VAT
27
YDNAC CLAMP 10101 (10,4MM)
58007017000
2,00€ Unit Price incl. VAT
30
BRAKE FLUID RESERVOIR '89
54513030044
24,20€ Unit Price incl. VAT
35
HH COLLAR SCREW M 6X10 WS=8
0014060103
0,67€ Unit Price incl. VAT
37
HH COLLAR SCREW M 6X20 WS=8
0014060203
2,00€ Unit Price incl. VAT
40
FLAT HEAD SCREW DIN7991-M 6X25
0991060253
1,39€ Unit Price incl. VAT
42
FLAT HEAD SCREW DIN7991-M 8X45
0991080453
2,24€ Unit Price incl. VAT
48
ECCENTRIC BRAKE LEVER STOP 04
80013048000
14,94€ Unit Price incl. VAT
49
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
1,03€ Unit Price incl. VAT
50
REAR BRAKE LEVER CPL. 04
80013050044
67,88€ Unit Price incl. VAT
51
BRAKE LEVER PEDAL 04
80013051000
10,22€ Unit Price incl. VAT
52
RETAIN.SPRING REAR BR.LEVER 04
80013052000
4,90€ Unit Price incl. VAT
53
COLLAR. BUSH.8,2X13X24X5,5 05
80013053100
2,72€ Unit Price incl. VAT
54
DISTANCE SPACER 8,2X16X3 MM 05
80013054100
2,36€ Unit Price incl. VAT
55
FORK PART REAR BRAKE CONTR. 04
80013055000
4,66€ Unit Price incl. VAT
56
PRESSURE ROD REAR BRAKE CON.04
80013056000
12,46€ Unit Price incl. VAT
57
MOUNTING BOLT 04
80013057000
3,21€ Unit Price incl. VAT
58
SPECIAL WASHER 04
80013058000
2,78€ Unit Price incl. VAT
59
SL-CIRCLIP 6 MBO 08
80013059000
1,94€ Unit Price incl. VAT
60
GROOVED BALL BEAR. 608 2RS C3
0625006087
6,96€ Unit Price incl. VAT
62
SPRING WASHER DIN137 B8
0137080003
1,03€ Unit Price incl. VAT
66
RIVET DIN0660- 5,0X16
0660050167
0,61€ Unit Price incl. VAT
70
hex nut DIN 934 M6
0934060003
1,15€ Unit Price incl. VAT
72
SELF LOCKING NUT M8 10.9
54310086200
2,06€ Unit Price incl. VAT

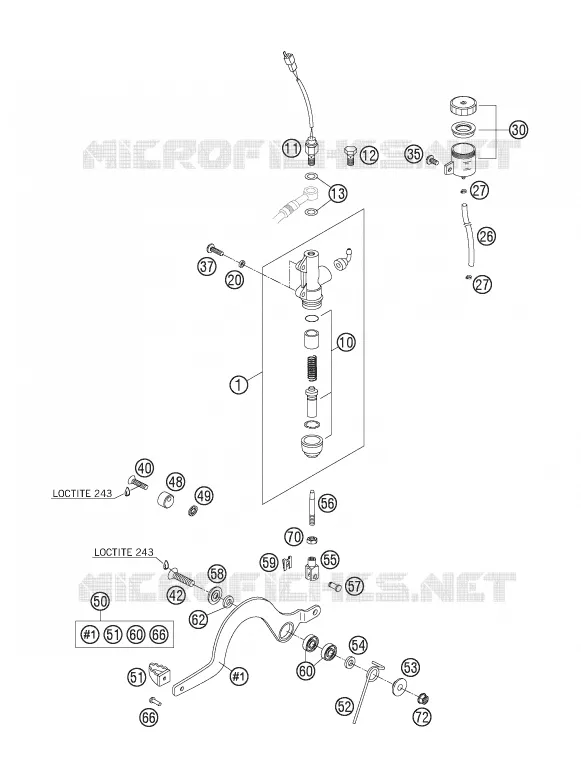

Find the detailed REAR BRAKE MASTER CYLINDER HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
