FRONT FORK (PARTS) for Husqvarna FS 650 C from 2007

SETTING KNOB + SCREW

48600564S

16,40€ Unit Price incl. VAT

Cross countersunk head screw M

48600481

2,66€ Unit Price incl. VAT

O-ring 3,7x1,6 NBR70

48600009

1,33€ Unit Price incl. VAT

OUTER TUBE L=577 D=54/60

48600492E

Not Available

Round-wire snap ring 48x2

48600016

3,69€ Unit Price incl. VAT

DU-BUSH D48XD52X12DDL02

48600429

14,46€ Unit Price incl. VAT

Supportwasher 50x57,6x1,5

48600013

5,81€ Unit Price incl. VAT

Shaft seal SKF 48x57,8x9,5 bla

48600399

10,65€ Unit Price incl. VAT

Snap ring SB58x1,5 acc drawing

48600070

3,69€ Unit Price incl. VAT

DUST CAP D=48 58,4X11,8

48600400

12,40€ Unit Price incl. VAT

DU-BUSH D47XD49X20DDL02

48600428

14,46€ Unit Price incl. VAT

Stop 12,4x31,9x200 cpl.

48600557S

40,78€ Unit Price incl. VAT

Adjustment tube 6x520

48600559

23,17€ Unit Price incl. VAT

Piston rod 12x554

48600568

92,57€ Unit Price incl. VAT

Needle 4,5x43,6

48600277

10,71€ Unit Price incl. VAT

O-ring 2x1,5 NBR70

48600298

1,33€ Unit Price incl. VAT

Spring (5,4) 4-23 rebound

48600444

4,54€ Unit Price incl. VAT

Washer 32x42x2,5 plastic

48600113

5,32€ Unit Price incl. VAT

SPRING 4,4N/MM SET D=5,1MM

91410006S

125,84€ Unit Price incl. VAT

SPRING 4,6N/MM SET D=5,1MM

91410019S

120,33€ Unit Price incl. VAT

SPRING 4,8N/MM SET D=5,25 MM

91410020S

111,08€ Unit Price incl. VAT

Spring retainer 33,5x43x3

48600021

10,71€ Unit Price incl. VAT

Spring retainer 12,3x19x1,25 r

48600525

10,71€ Unit Price incl. VAT

SCREW SLEEVE M29,3X1 L=90 CPL.

48600556S

56,57€ Unit Price incl. VAT

O-ring 6x1,2 NBR70

48600299

1,33€ Unit Price incl. VAT

Spring (13,9) 17-32 rebound

48600511

4,30€ Unit Price incl. VAT

TAP REBOUND 07

48600513

12,52€ Unit Price incl. VAT

Spring (11,7) 1,5-8 valve

35480377

4,54€ Unit Price incl. VAT

Pistonring 26x28x5

48600060

7,50€ Unit Price incl. VAT

Piston 6,05x27,65x12 rebound

48600042

23,17€ Unit Price incl. VAT

Nut M6x0,5 h6,5 WAF10 rebound

40540486

4,54€ Unit Price incl. VAT

TUBE 29,3X1X390 D=8,5MM

48600081

111,08€ Unit Price incl. VAT

O-ring 46x2 NBR70 siliconized

48600048

1,88€ Unit Price incl. VAT

AXLE CLAMP L/S + TUBE CPL. 07

48600402S1

282,84€ Unit Price incl. VAT

AXLE CLAMP R/S + TUBE CPL. 07

48600238S1

389,86€ Unit Price incl. VAT

HH COLLAR SCREW M 8X25 WS=10

0015080253

1,27€ Unit Price incl. VAT

Nut valve M6x0,5 h6,5 WAF17

48600163

4,54€ Unit Price incl. VAT

Spring (8,5) l6,5 valve

48600202

4,54€ Unit Price incl. VAT

Tap compression cpl.

48600586S

34,73€ Unit Price incl. VAT

Piston 6x27,8x9 compression

48600047

23,17€ Unit Price incl. VAT

O-ring 21x2 NBR70

46811499

1,63€ Unit Price incl. VAT

O-ring 24x2 NBR70

35480320

1,63€ Unit Price incl. VAT

Copper disc 29,5x33,5x1

48600004

1,63€ Unit Price incl. VAT

Rubber cap 35x10 NBR80

48600141

1,63€ Unit Price incl. VAT

FORK OIL SAE5 5L 2005

48600401S1

110,72€ Unit Price incl. VAT

PRE-LOAD ADJ. M51X1,5 CPL. 07

48600431S1

48600431S2

63,77€ Unit Price incl. VAT

Preload bush 26,5x42x10

48600038

5,20€ Unit Price incl. VAT

Preload bush 26,5x42x5

48600037

4,36€ Unit Price incl. VAT

Preload bush 42x26,5x2,5

48600036

3,57€ Unit Price incl. VAT

Preload bush 26,5x42x1,5

48600053

3,57€ Unit Price incl. VAT

SILICONE GREASE F. DUST STRI

T511

52,47€ Unit Price incl. VAT

REPAIR-KIT EXC FRONT FORK06/07

R14013

85,00€ Unit Price incl. VAT

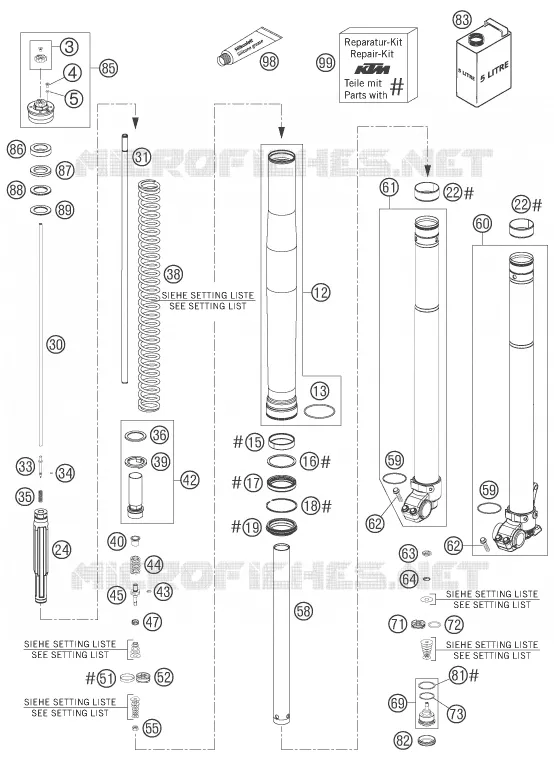

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
