FRONT FORK (PARTS) for Husqvarna FE 450 from 2013

Adjustment tube 3x486

48600996

23,17€ Unit Price incl. VAT

Piston rod 8x499

48601054

92,57€ Unit Price incl. VAT

Needle 5x10 cpl.

48600998S

10,71€ Unit Price incl. VAT

O-ring 2,2x1,6 Viton75 green

46811265

3,15€ Unit Price incl. VAT

GUIDE SHIM REBOUND SPRING

48601048

2,66€ Unit Price incl. VAT

Spring (11) 38-25 rebound

48601049

4,54€ Unit Price incl. VAT

Tap 6x45 rebound

48600986

10,89€ Unit Price incl. VAT

Spring (11,4) 0,4-8 valve

48600382

4,54€ Unit Price incl. VAT

Piston 6x20x11 rebound

48600985

48600985E

18,51€ Unit Price incl. VAT

Pistonring 18x20x4,9

48601171

7,44€ Unit Price incl. VAT

O-ring 15x1 NBR70 Adcoat71

48601128

1,33€ Unit Price incl. VAT

Pusher DO5

48601033

4,54€ Unit Price incl. VAT

Needle 14x59,9

48600999

12,34€ Unit Price incl. VAT

Needle 15x59,5 red

48601123

12,34€ Unit Price incl. VAT

Spring retainer 8,3x44x1,5

48601061

10,71€ Unit Price incl. VAT

SHIM 29X44X0,3

48601184

2,66€ Unit Price incl. VAT

SCREW SLEEVE M23,5 CPL.

48601022S

57,90€ Unit Price incl. VAT

O-ring 40x3 NBR70 Adcoat 71

48601130

1,88€ Unit Price incl. VAT

Seal ring Freudenberg 8mm 86Sh

48600954

4,78€ Unit Price incl. VAT

CHECK VALVE D21 CPL.

48601025S

11,56€ Unit Price incl. VAT

Guide bushing 8x10x10

48600953

7,44€ Unit Price incl. VAT

Reservoir 36x74,5 cpl.

48601021S

70,72€ Unit Price incl. VAT

O-RING 24x2

48601127

1,63€ Unit Price incl. VAT

X-ring 29,74x3,53 NBR70 Adcoat

48601111

4,78€ Unit Price incl. VAT

Pistonring 32x36x5

48601124

9,08€ Unit Price incl. VAT

X-ring 24,99x3,53 NBR70 Adcoat

48601110

4,78€ Unit Price incl. VAT

Guide bushing 24x27x6

48601109

7,44€ Unit Price incl. VAT

Cartridge-tube 20x403

48601031

92,57€ Unit Price incl. VAT

Screw sleeve M30x1/M24x0,75

48601019

53,72€ Unit Price incl. VAT

HYDROSTOP KIT

R14034

23,17€ Unit Price incl. VAT

BUSHING

48601180

4,54€ Unit Price incl. VAT

Adapter M6x0,5xM6x0,5x19

48601083

4,54€ Unit Price incl. VAT

Piston 6x28,8x13 compression c

48600984S

28,31€ Unit Price incl. VAT

O-ring 24x1,5 NBR70 Adcoat71

48601133

1,63€ Unit Price incl. VAT

SCREW CAP M30

48601020

48601247

21,18€ Unit Price incl. VAT

O-ring 26x2 NBR70 Adcoat 71

48601132

1,63€ Unit Price incl. VAT

O-ring 4x1,5 NBR70

50180222

1,33€ Unit Price incl. VAT

HS countersunk head screw M4x1

48600527

2,66€ Unit Price incl. VAT

Adjuster compression white

48601117

0,73€ Unit Price incl. VAT

Adjuster rebound red

48601118

2,54€ Unit Price incl. VAT

Cross countersunk head screw M

48600481

2,66€ Unit Price incl. VAT

SCREW CAP M51X1,5 REB. KPL.

48601050S

60,20€ Unit Price incl. VAT

SCREW CAP M51X1,5 COMP. KPL

48601116S

60,20€ Unit Price incl. VAT

O-ring 46x2 NBR70 siliconized

48600048

1,88€ Unit Price incl. VAT

Lock nut M8 h33 WAF19

48601034

7,44€ Unit Price incl. VAT

Spring guide 8,2x32,5x102

48601035

12,52€ Unit Price incl. VAT

SPRING D43,8 L465 3,8N/MM SET

91410082S

111,08€ Unit Price incl. VAT

SPRING D43,8 L465 4,0N/MM SET

91410083S

101,82€ Unit Price incl. VAT

SPRING D43,8 L465 4,2N/MM SET

91410084S

111,08€ Unit Price incl. VAT

SPRING D43,8 L465 4,4N/MM SET

91410085S

111,08€ Unit Price incl. VAT

SPRING D43,8 L465 4,6N/MM SET

91410086S

111,08€ Unit Price incl. VAT

SPRING D43,8 L465 4,8N/MM SET

91410092S

111,08€ Unit Price incl. VAT

SPRING D43,8 L465 5,0N/MM SET

91410093S

120,33€ Unit Price incl. VAT

SPRING D43,8 L465 5,2N/MM SET

91410094S

120,33€ Unit Price incl. VAT

Fork outer tube 49,13x577 dt54

48600736

316,17€ Unit Price incl. VAT

Guide bushing 47x49x20

48601008

10,71€ Unit Price incl. VAT

Guide bushing 48x52x12

48601009

10,71€ Unit Price incl. VAT

Supportwasher 50x57,6x1,5

48600013

5,81€ Unit Price incl. VAT

Shaft seal SKF 48x57,9x11,4 re

48601179

14,22€ Unit Price incl. VAT

Snap ring SB58x1,5 acc drawing

48600070

3,69€ Unit Price incl. VAT

Dirt scarper SKF 48mm red

48601178

17,30€ Unit Price incl. VAT

AXLE CLAMP L/S WITH INNER TUBE

48601028S1

384,66€ Unit Price incl. VAT

AXLE CLAMP R/S WITH INNER TUBE

48601029S1

384,66€ Unit Price incl. VAT

HH collar screw M8x25

0025080256

3,27€ Unit Price incl. VAT

Washer 35x43x2,5 plastic

48600456

4,54€ Unit Price incl. VAT

Preload bush 35x43x3,5

48600457

4,54€ Unit Price incl. VAT

Washer 35x43x1,5 plastic

48600458

4,54€ Unit Price incl. VAT

Fork protection ring 62,1mm

48600698

9,08€ Unit Price incl. VAT

FORK OIL SAE4 5L

48601166S1

111,50€ Unit Price incl. VAT

SILICONE GREASE F. DUST STRI

T511

52,47€ Unit Price incl. VAT

REPAIR - KIT

R24001

85,00€ Unit Price incl. VAT

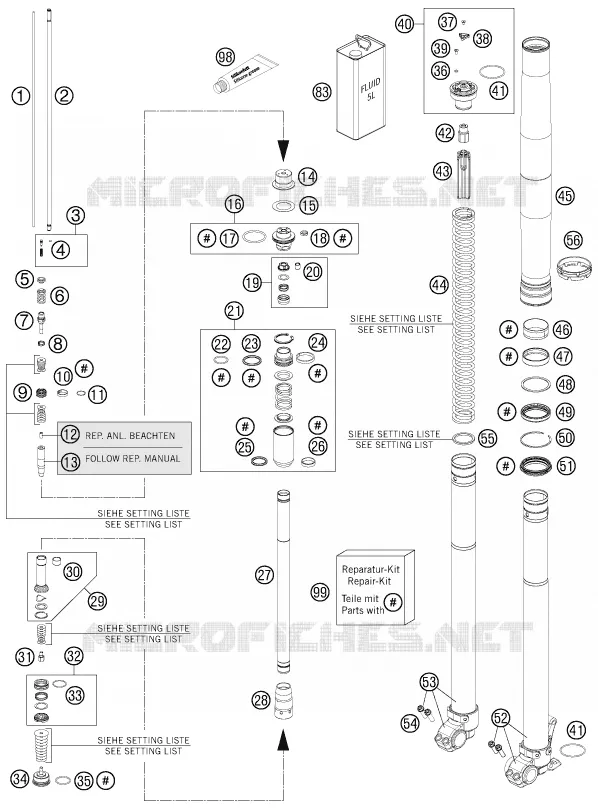

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
